15470 Akyapak APK 35 Angle Roll Hardened Rolls
Product Description

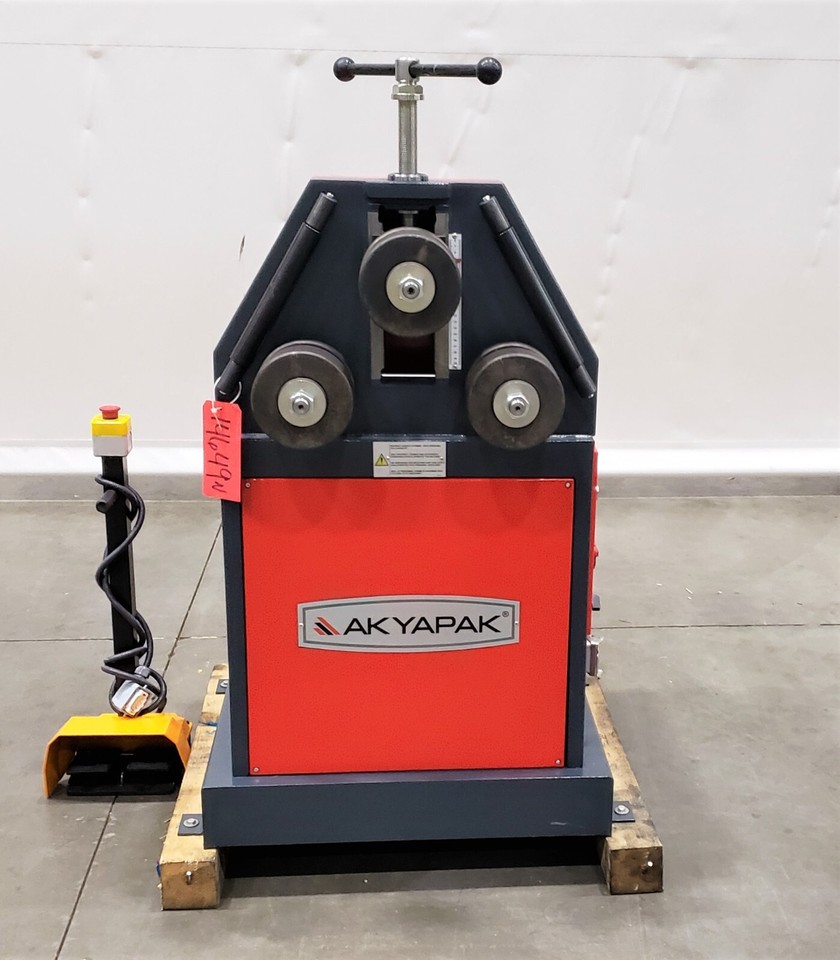

Akyapak 2″ x 3/16″ Angle Bending Roll Model APK 35
Equipped With
- APK 35 Angle Bending Roll
- Machine body is steel (ST-52) construction
- On APK35 rolls are driven by a hydraulic motor planetry gearbox and gears
- Shafts made of special steel hardened and grounded
- APK35 guide rolls are adjustable manually in one direction
- One set standard rolls
- Manual lubrication
- Lower rolls hydraulic moveable up and down
- Digital display for lower rolls
- Separate and moveable control panel
- Horizontal andamp; vertical working
- Suitable for CE
TECHNICAL DETAILS
Roll Diameter Ø inch 5.90”
Shaft Ø inch 1.97”
Rolling Speed ft/min 14’ per/min.
Motor Power hp 1.5 kw
Length Ft 2.7’
Height Ft 4.9’
Width Ft 4.4’
Weight Ibs 705
