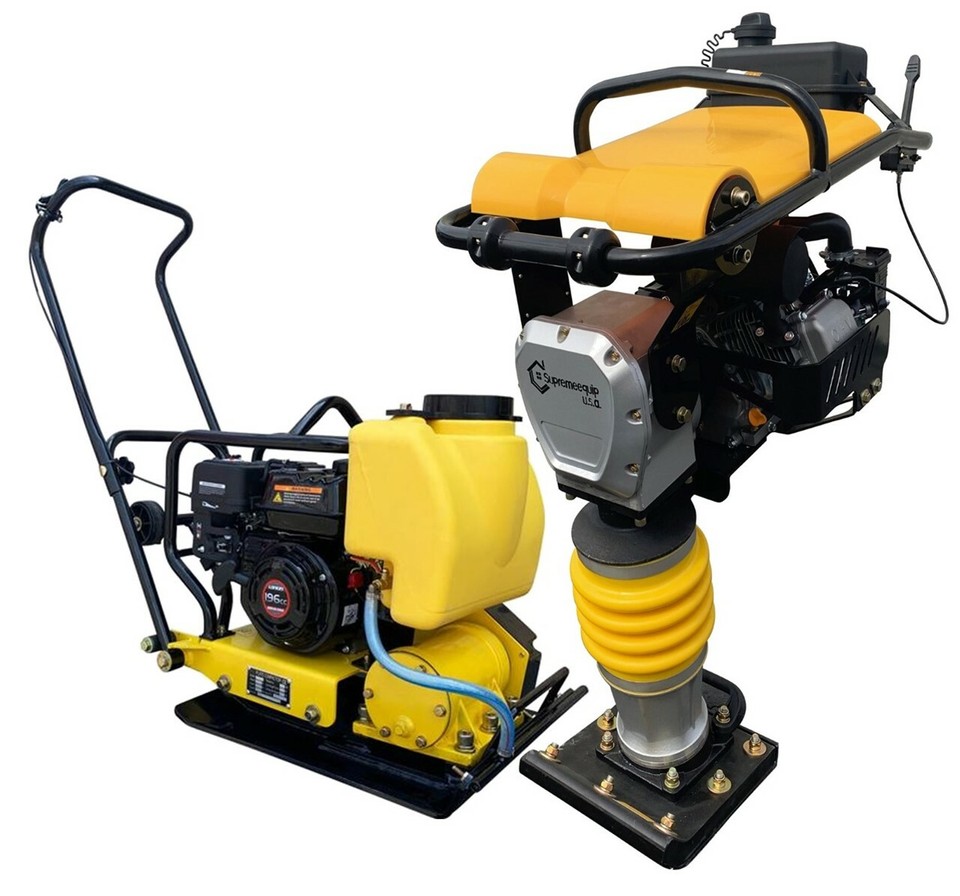

6.5HP Tamper Rammer AND6.5HP Gas Plate Compactor W/Water Tank COMBO!! Model 2024
Product Description
6.5 HP VIBRATORY PLATE COMPACTOR TAMPER RAMMER 4 STROKE JUMPING JACK
- 4 Stroke Gas Engine Tamping Impact Jack Rammer
- Approx Unit
- overall dimension: 18''L x 28-3/4''W x 42''H Aprox
- Engine power: 6.5 HP 4 Stroke Recoil Start
- Impact force also is known as "ramming force": 10000N
- Percussion rate (ramming frequency): 450~650 times/min
- Jumping stroke (leap height): 40~65mm
- Forward speed (advancing speed): 10-13m/min
- This jack is upgraded to German import gas tank and bellows
- Ramming plate size: 13" x 11-7/8" (330 x 300mm ) approx
- The unit comes pre-assembled works right out of the box after putting oil and gas.
- Everything comes as shown in photos.
- Includes wheels kit and extra filter
- Free Heavy Duty Flexible Funnel 18" long with your purchase
Plate Compactor Description:
6.5 HP GAS VIBRATION PLATE COMPACTOR WALK BEHIND TAMPER W/WATER TANK
- Engine type : Forced Air -Cooled 4 -Stroke Gasoline Engine .
- Max power 4.8KW (6.5HP) (3600RPM) .
- Displacement : 196 MI .
- Power HP : 6.5 . Compacts 12 Depth 3 Gallon
- Full Tank 10W30 .
- Effective base area : 25 x 18 Inch (620 x 450 mm) .
- Vibration Frequency : 6500 Climb ability : 0-20 Degree .
- Impact force ; (4000lb Force) .
- Compaction area : Max 3229 Ft/ hr
- Compaction depth Max 790 Inch
- Wheel kit included
- Compactor depth (Soil) (Cn) ; 30
- Forward speed (Soil) (M/ Min) : Up To 30
- Gradeability : 30%
- Package weight 190lbs
- Package Dimension : 25.6''L x 19.3''W x 27.6'' H Inch
