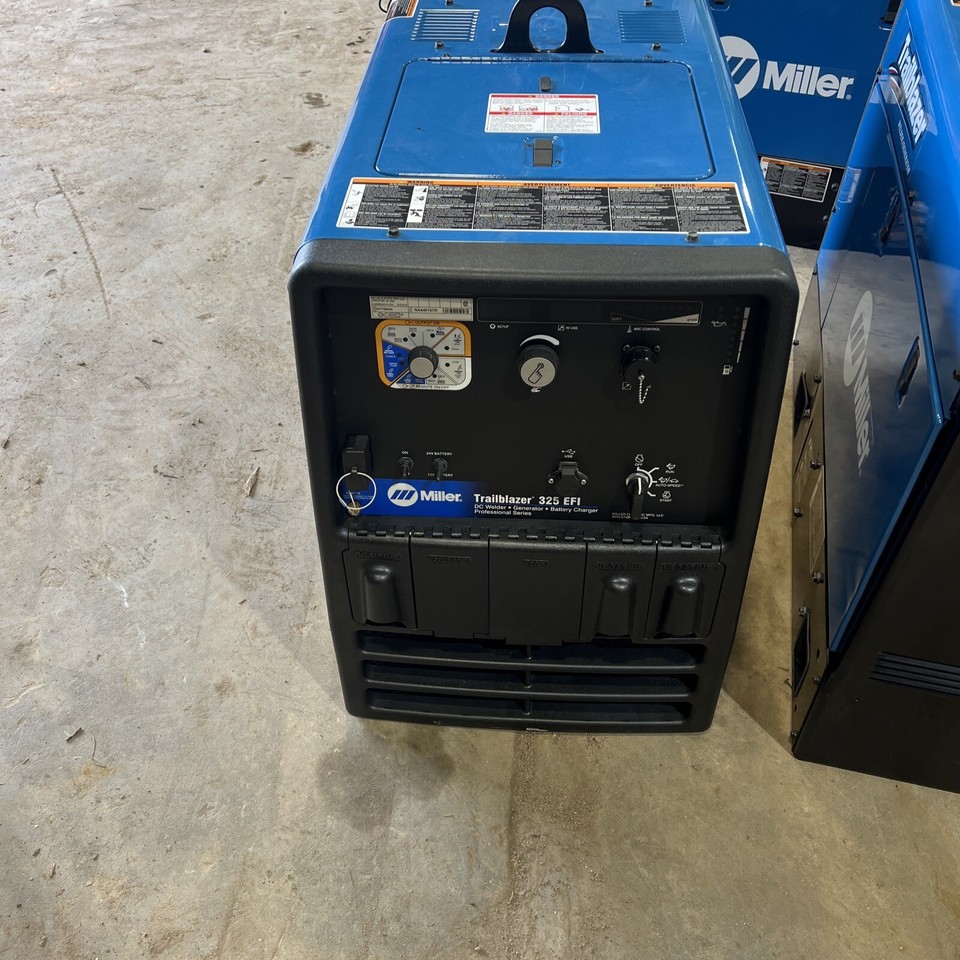

Trailblazer® 325 EFI w/GFCI, Excel™ Power & Wireless Interface Control

Industries Interests

Infrastructure

Fabrication

Pipeline

Maintenance and Repair - Field Operations

Engine Brand

Kohler

Engine Idle Speed

2400 RPM

Engine Weld Speed

Auto-Speed™ technology: 2400, 2800, 3200 or 3600 RPM

Fuel Tank Size

12 gal.

Fuel Type

Gasoline

Amperage

20 A - 325 A

Horsepower

23 hp

Rated Output

325 A at 28 V, 100% duty cycle

Single Phase Generator Continuous Power

10500 W

Single Phase Generator Peak Power

12000 W

Sound Rating

Weld: 150 A load: 65 dB (90 Lwa), 325 A load: 73.5 dB (98.5 Lwa) Generator power: 65 dB (90 Lwa)

Rated Carbon Diameter

3/16 in (4.8 mm)

Current Type

DC

Portability

Lift Eye (Standard)

Weld Output

CC/CV

Net Width

20 in

Net Height

28 in

Net Length

40.5 in

Net Weight

491 lbs
